Temprecord manufactures a wide variety of data loggers, but they can be divided into 3 broad classes as shown below. The Temprecord program can program and read all of these loggers - there is no need for separate programs for each logger class. In addition, all loggers communicate with the same Temprecord Reader Interface, and the data files produced from each logger class are compatible with each other. For more detail on the range of loggers provided and their specifications see: http://www.temprecord.com/products.html
Each class of logger has a different feature set. In general the Temprecord program will not display controls for functions not present in a particular logger, or the controls will be "grayed out".

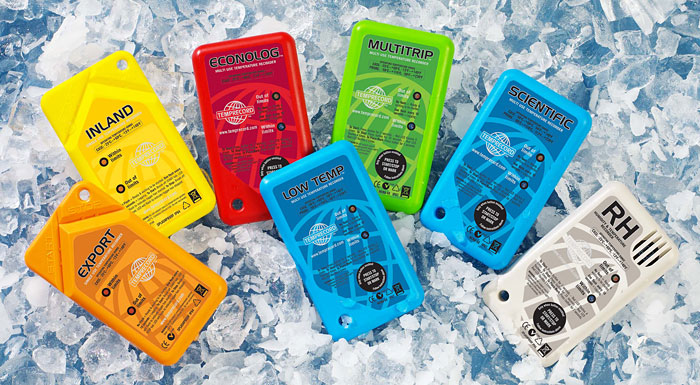

Temprecord Mk3 Loggers
There a several variants of "Mk3" loggers. The Inland and Export models are single use loggers that are started and stopped by snapping off corner tabs. The remainder of the Mk3 loggers are multi-use loggers. The Scientific and RH (relative humidity) loggers are individually corrected and have enhanced accuracy specifications.

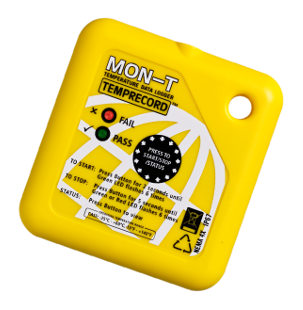

Temprecord Mon-T Logger
The Mon-T logger is a smaller form factor low-cost logger intended for mass deployment in produce shipping. Despite the smaller size it can still be inserted into the Temprecord Reader Interface and programmed and read.
Temprecord G4 (LCD) Loggers
The G4 logger is a completely new design that incorporates a Liquid Crystal Display (LCD). As well as providing the logging functions of the Mk3 loggers, the G4 logger displays the most recent logged temperature. It can also display the temperature on demand, and various statistics computed from the logged data.
The LCD logger is intended for applications where it can be useful to interrogate the logger for maxima and minima, etc. without the need for a PC.,
